Steplock Lite Application

Manual version 1


This guide is intended for users who have already downloaded the Steplock Lite app and created an account.

The Steplock Lite app is used both by those who want to open doors and by those who administer them. The app only works with ST2012, ST2046, and ST2048. It is an offline solution and communicates with these devices locally via Bluetooth.

Step by Step guide on how to setup a system, add a device and give permission to end users.

The account that is logged in when the system is created will automatically become the system owner and cannot delete the system or remove its own admin rights. If the system owner needs to be changed, please contact our support team and we will assist with this.

We recommend creating the system using the end user’s account.

1. Press the "settings wheel" at the top right corner.
2. Press "Create system"

See images below

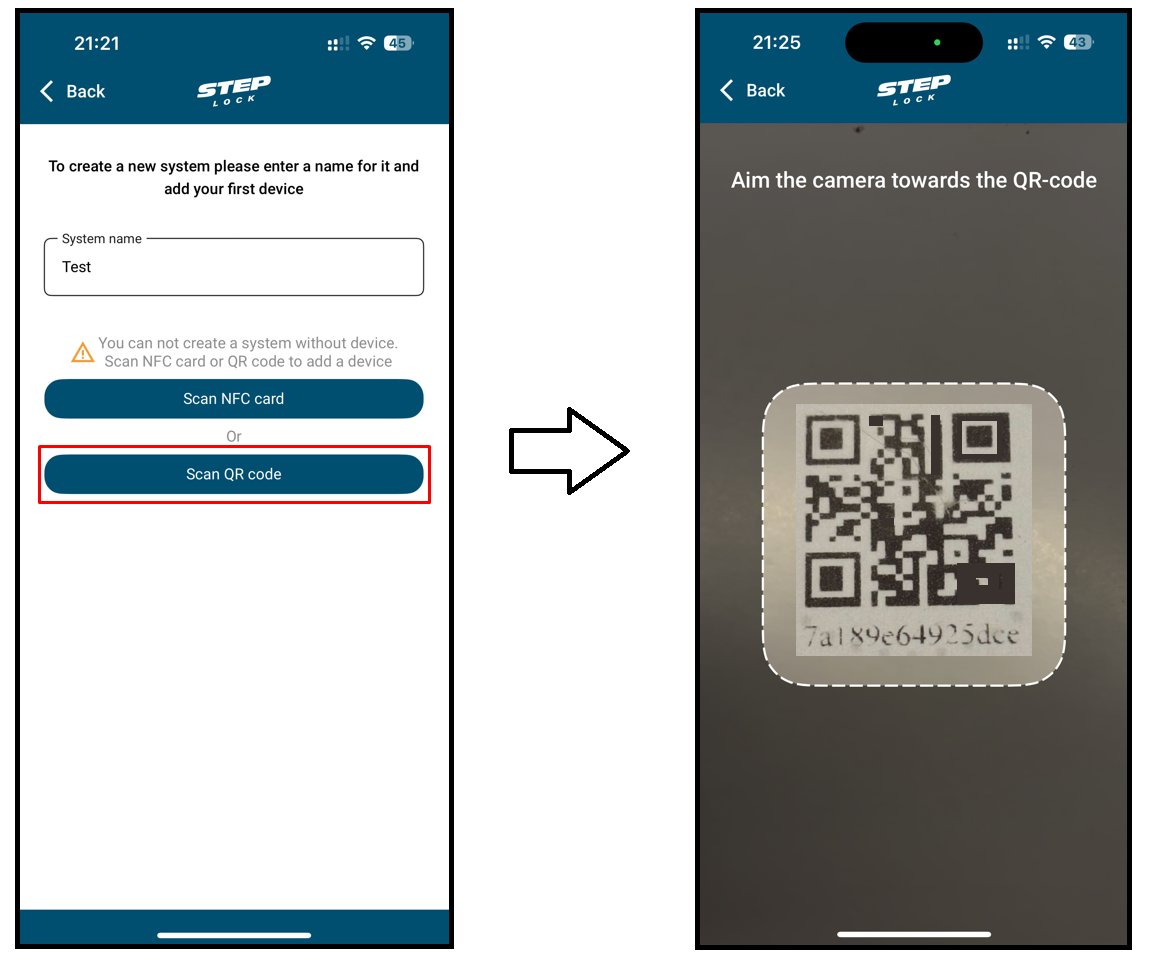

3. Enter a System name and press the "Scan QR Code" Button.
4. Aim the Camera towards the QR-code of the device you want to add.

See images below


The system has now been created and we added the device to the system called "STBLE_766E".
This door can now be opened by pressing the Lock symbol (Button) as long as you are nearby the device.

OBS - You might get a popup saying enable bluetooth. This needs to be allowed in order for the Phone and the device to communicate so the door can be opened.

5. Press the button "Go to my system"

The "Doors" Meny is the one displayed in the image below

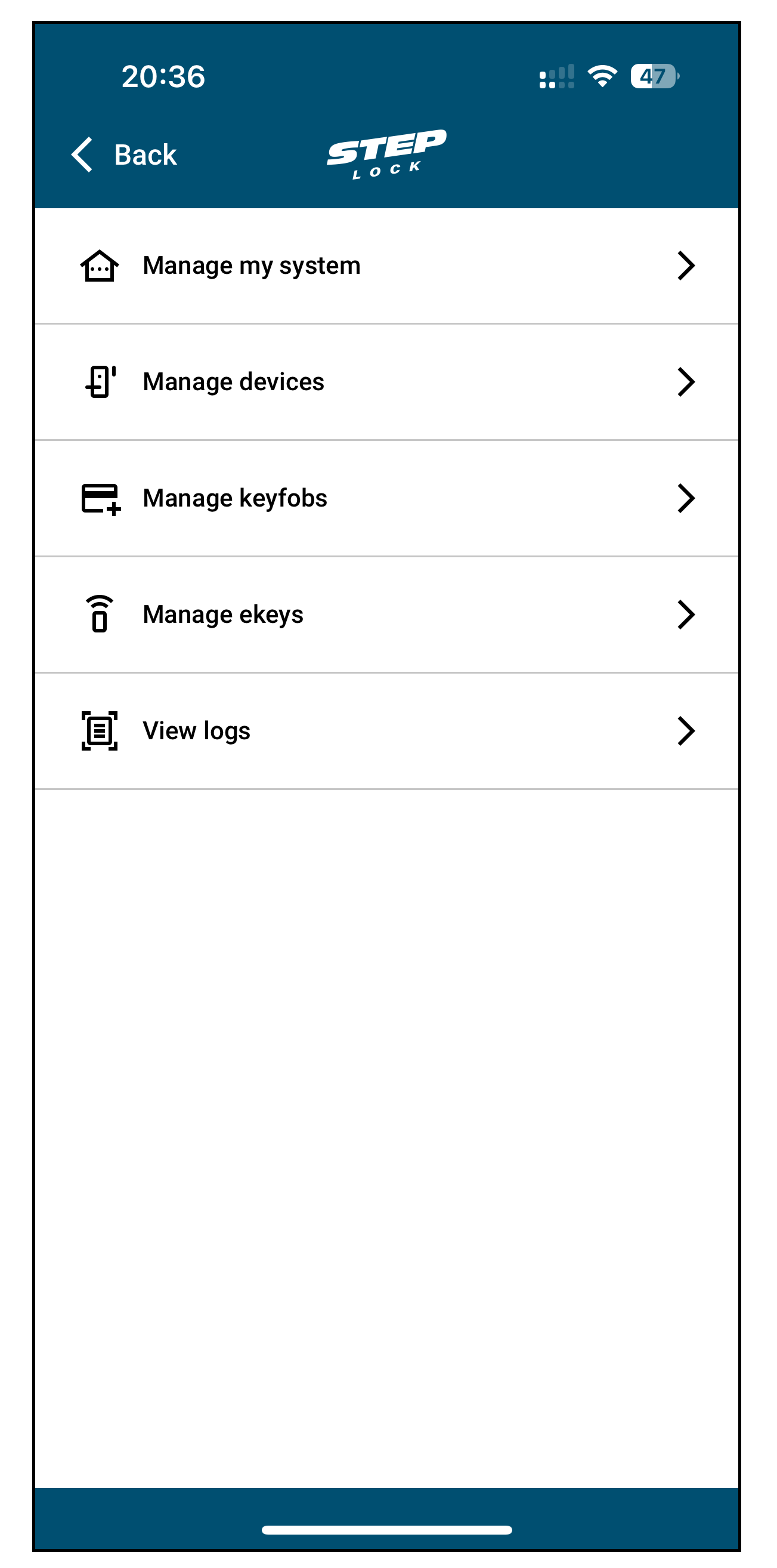

Admin Menu

This menu is for the administrator of the system to manage the whole system for the users. You can add permission to open using keyfobs, ekeys. Manage devices and see logs.

• Manage my system

In this meny you can change the name of the "System name" and change the "System time zone".

• Manage Devices

In this menu you can see all devices and add new devices or remove devices. You can also click on one device to get to the next menu to see and change the device settings.

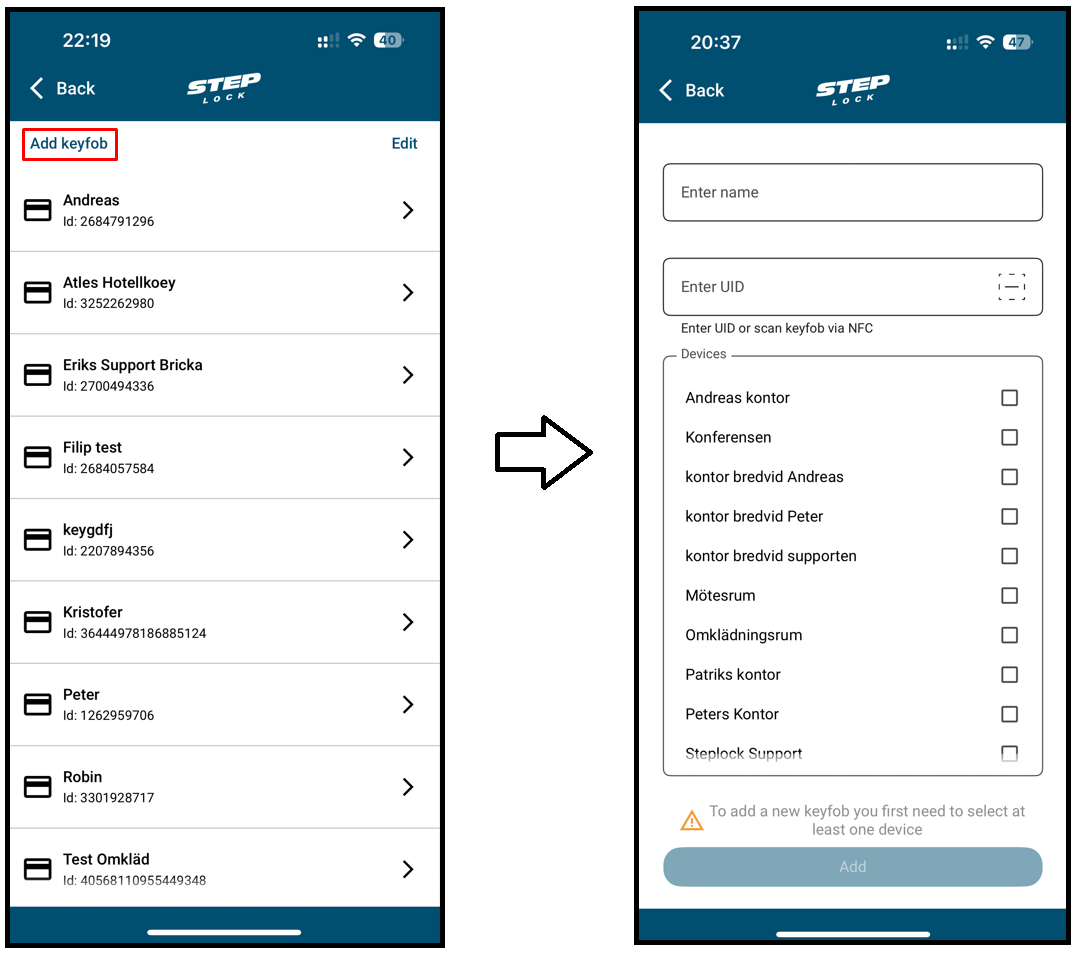

• Manage Keyfobs

In this menu you can see all the keyfobs added to the system. You can click add keyfob to add a new keyfob to the system and select which devices it should get access to open.

OBS - When you add a keyfob and select a device. In order for the keyfob to work you need to be close to the device with you app so you can start pushing out the information to the device.

If you are not nearby the device you can postpone the push and it will receive the data at a later time when you interact with the device. This could be by pressing the Lock symbol by opening the door. The Phone will connect and send out all information queued up and open the door ofcourse.

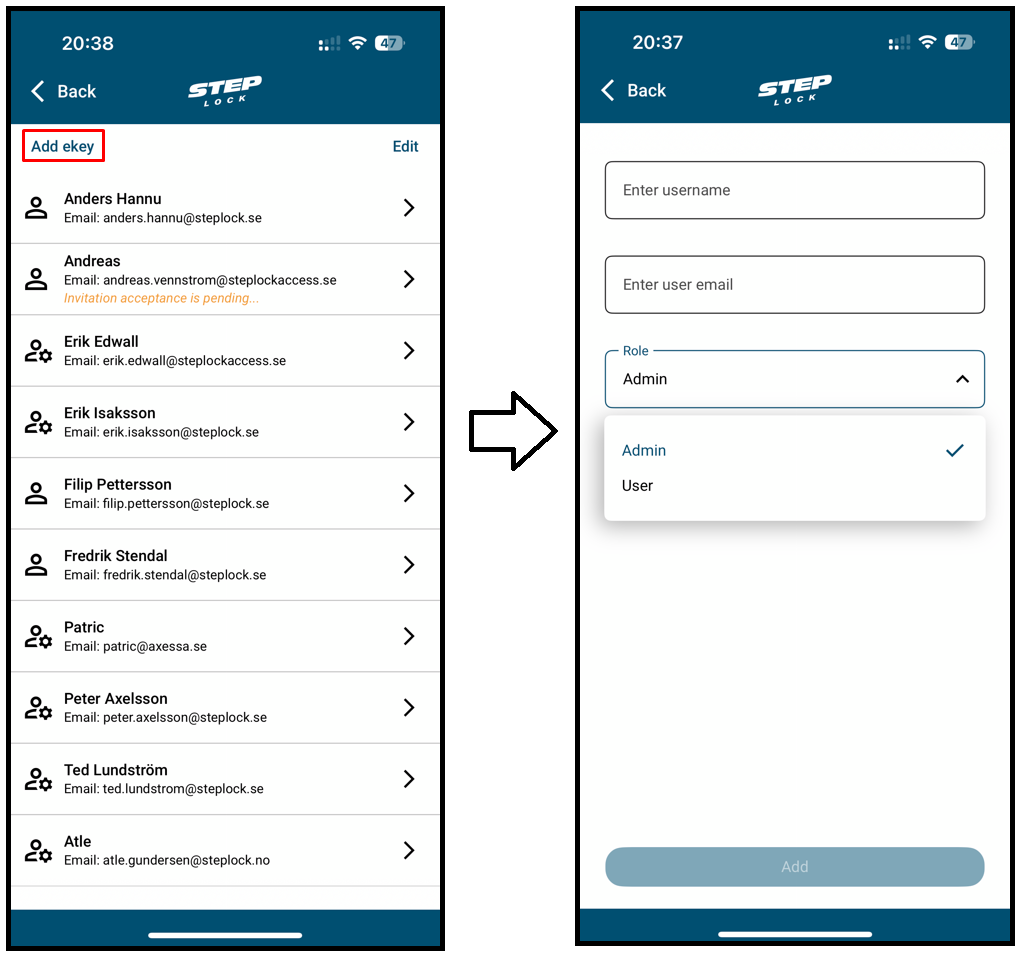

• Manage Ekeys

In this menu you can see all the ekeys, create new ones and manage existing. ekey is access through the app when pressing the lock symbol showed in doors menu.

Once "Add ekey" is pressed you can select if you want to invite someone to help administrate the system or a user which can only open the doors you give the user permission to open.

OBS - You enter the email adress the user used to create the account on Steplock Lite.

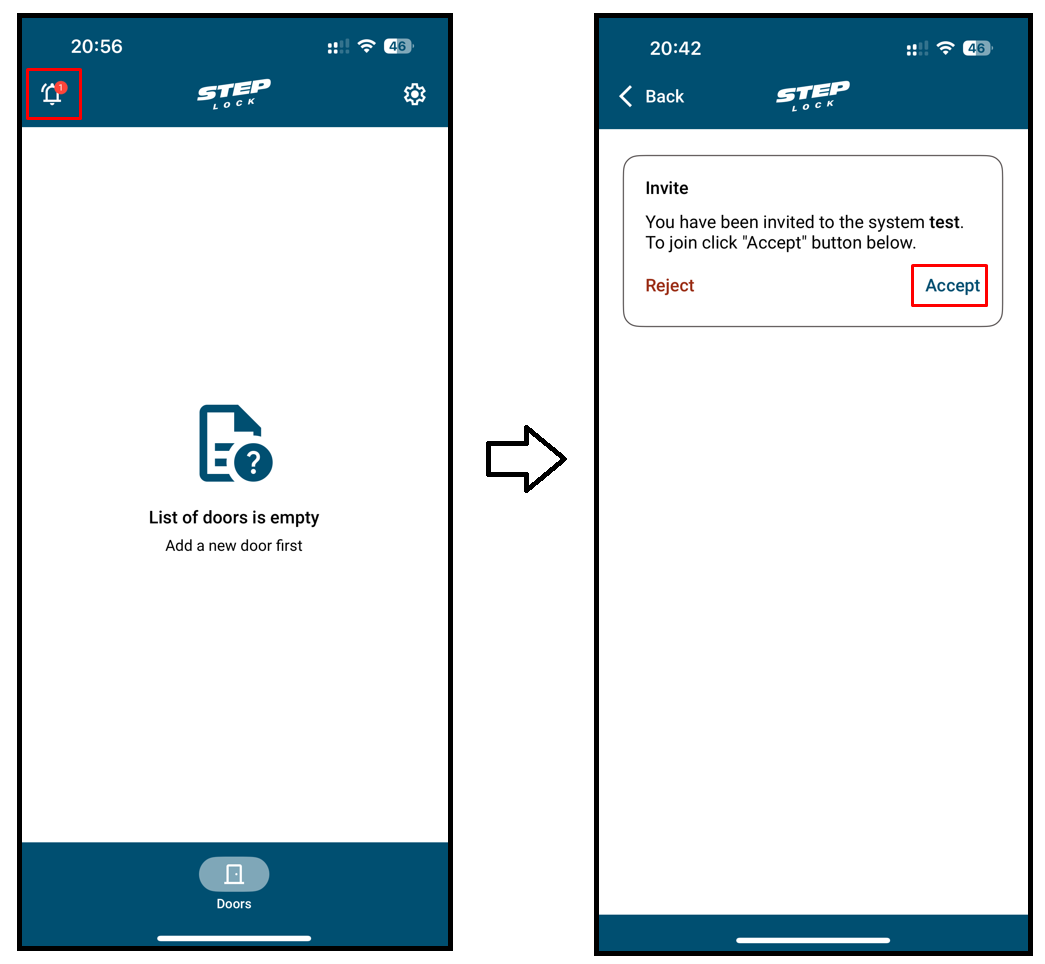

Once the user has been invited they receive a notification on ring bell at the top left of the start menu.
PS: If you haven't recevied the notification. Try to close the app and open it again.

The user clicks the ring bell and accepts the invitation and gains the access to the doors selected by the administrator.

see images below

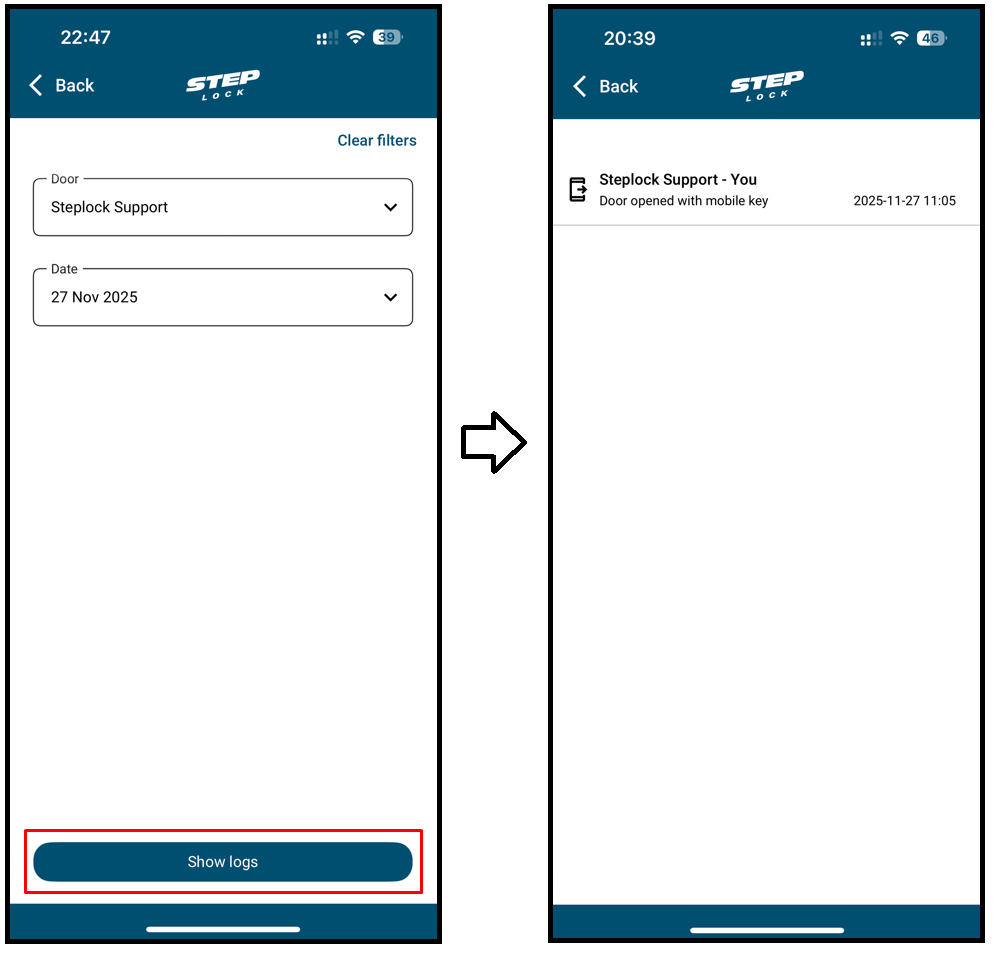

• View Logs

In this menu you can see all the logs.

When you are nearby the device you can select a device and receive the logs of what has happend to this device.

see images below
