MANUAL

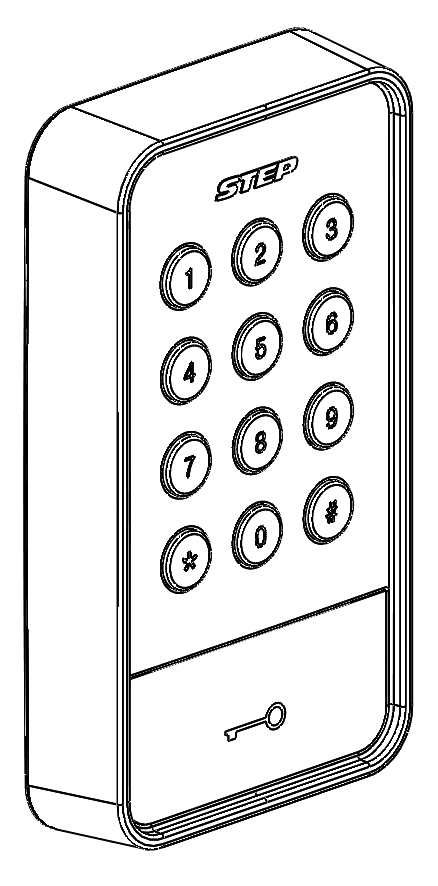

STEP OSDP Card reader ST2010/2011

In the package

4x Assembly screw

2x Screw terminal

1x Locking screw

1x Wall plate

1x Card-reader

Installation

Cabling

OSDP uses RS-485 as underlying bus, this means that the recommended cable specification for cabling is
according to RS-485 standard.

Recommendation:

• 2 pair, one for power and one for communication
• Twisted pair
• 0,22mm2 / 24 AWG for shorter distances < 30 meters
• 0,32mm2 / 22 AWG for > 30 meters

For shorter distances reuse of wiegand wires can be possible, but remember it will not meet the RS-485
requirements.

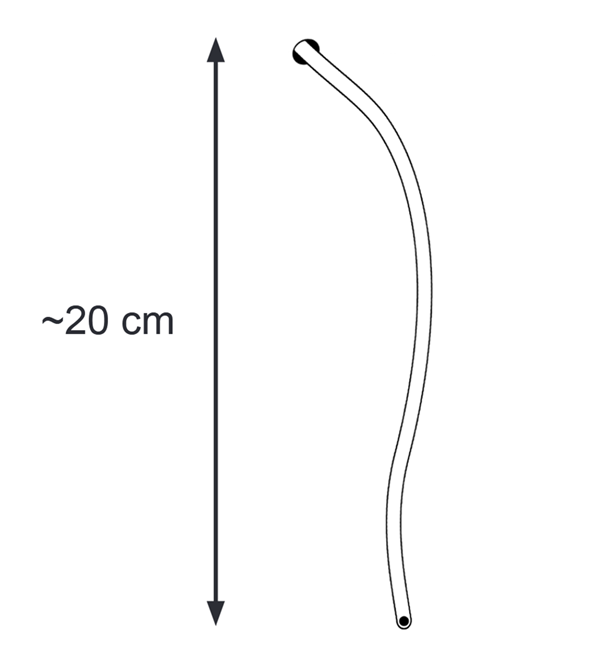

It is recommended to leave at least 20cm (200mm) cable where reader should be mounted during the installation of the cabling, to make connection easier during the installation process.

Wall plate on wall

Secure the wall plate into the wall according to picture bellow  with the attached screws at marked.

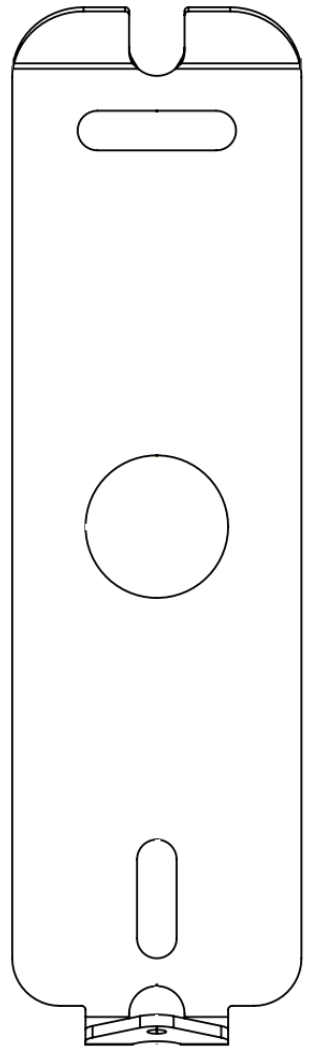

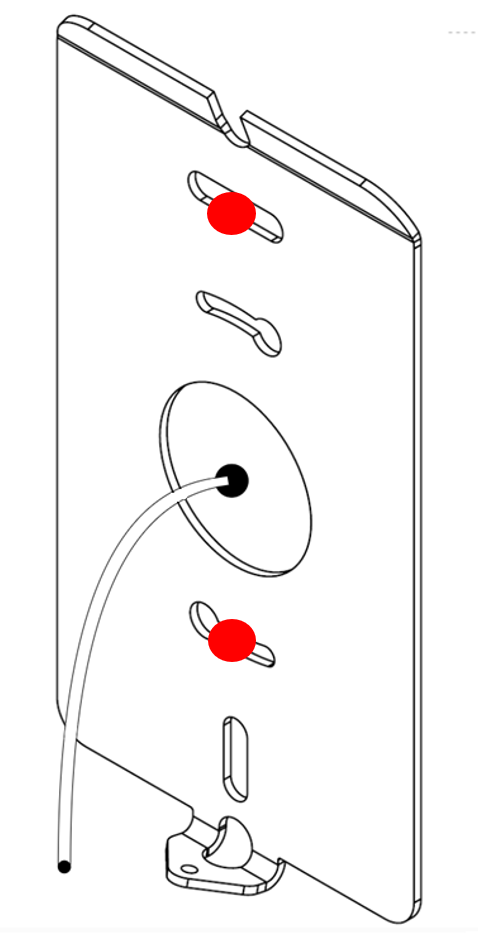

ST2011 Wall plate

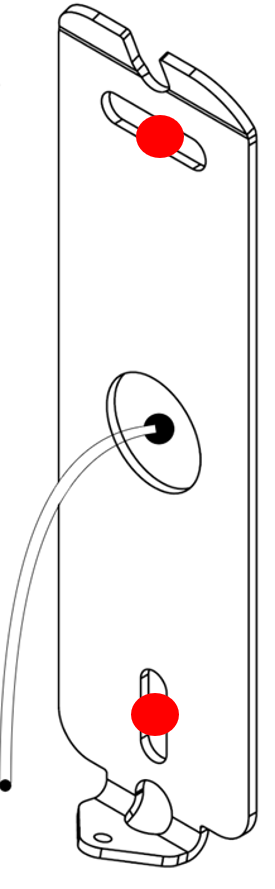

ST2010 Wall plate

Wall plate on recessed box

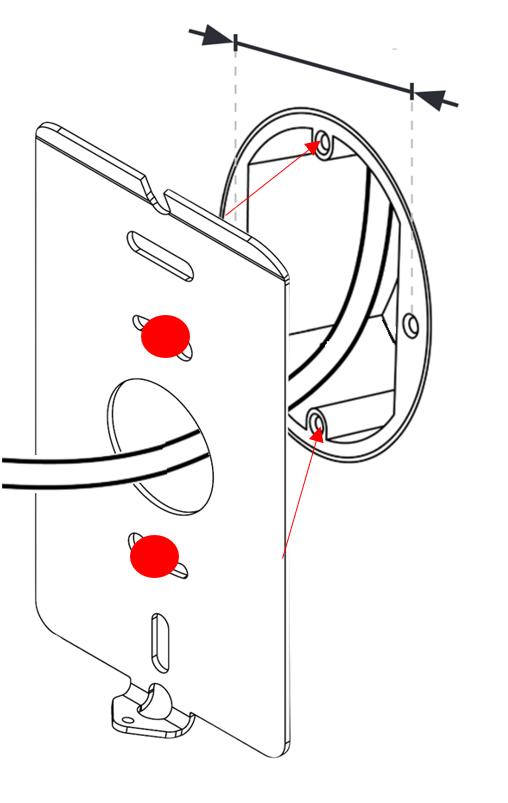

When mount the wall plate over an recessed junction box use the red marked holes used to secure it into the junction box.

ST2011 Wall plate on junction box

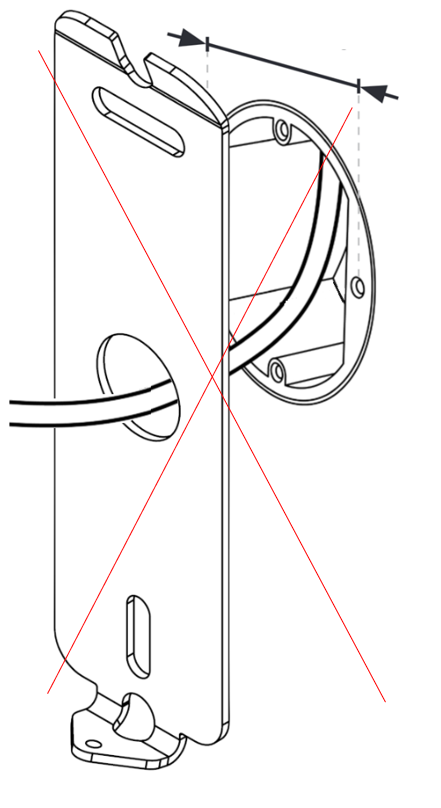

ST2010 wall plate can not be fitted on an junction box.

Connection

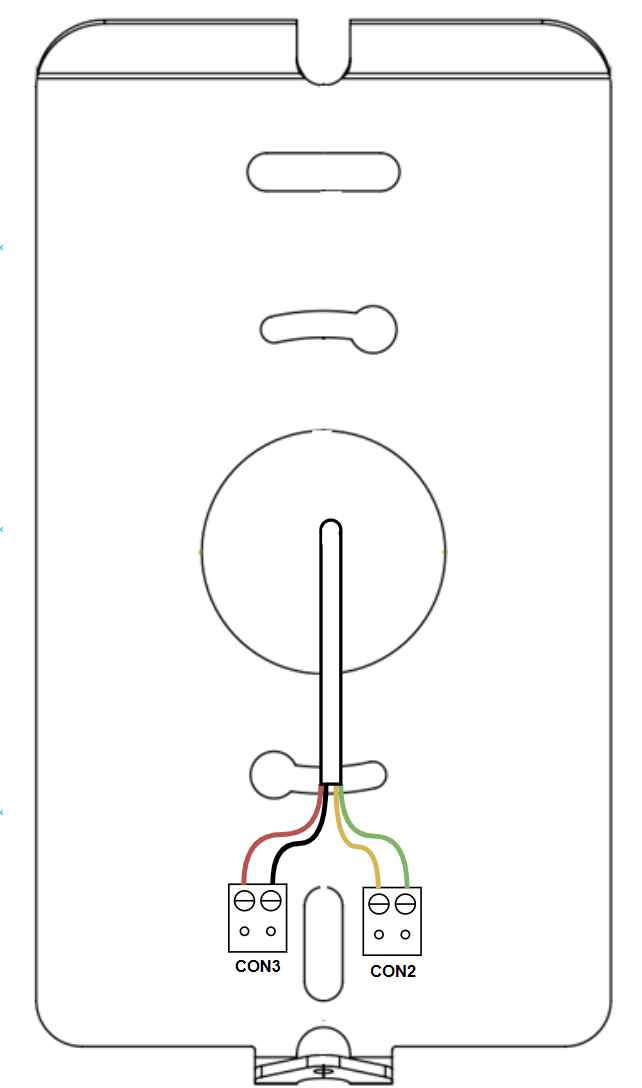

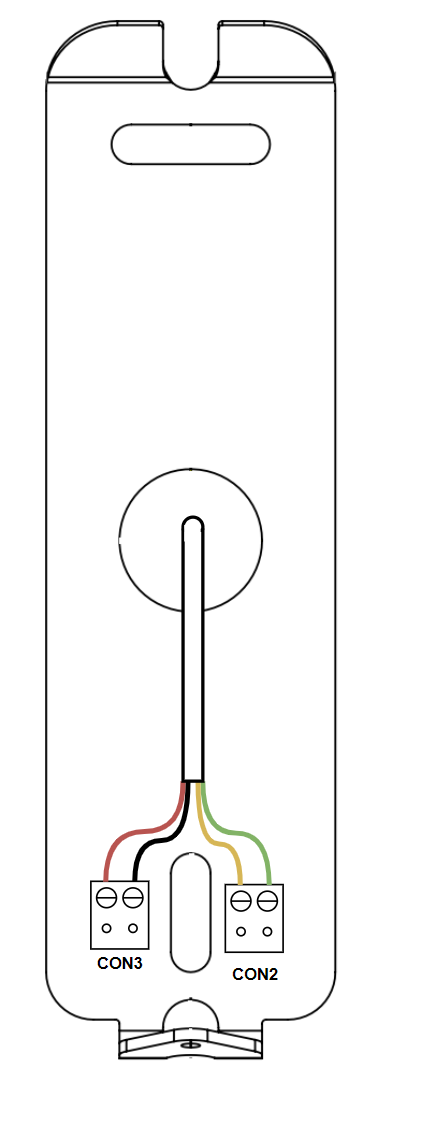

Now it's time to connect the communication cable. Strip off the mantle, strip each pair in the cable, and connect the power pair to CON3 and the communication pair to CON2.

Terminal description

CON2

CON3

Deployment and addressing

Bus termination

Termination for OSDP (Open Supervised Device Protocol) is generally needed to ensure stable and reliable signal transmission, particularly over longer distances or when multiple devices are connected in a chain. It helps reduce signal reflections and communication issues.

When is termination needed ?

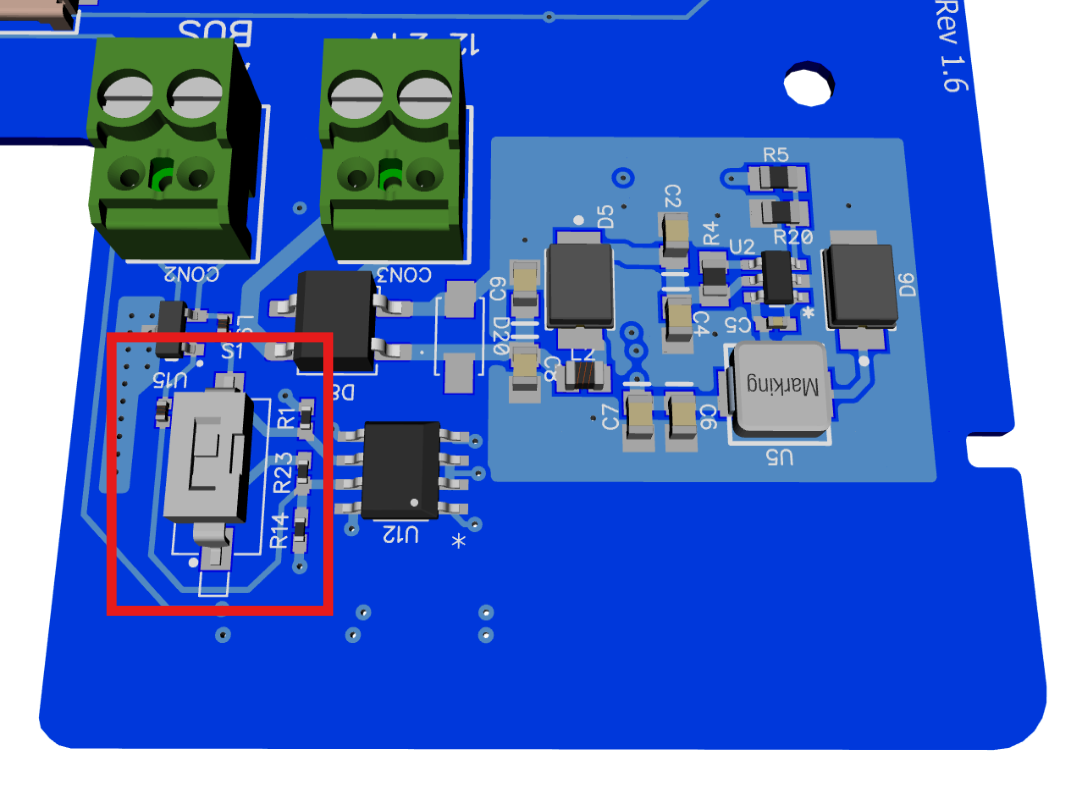

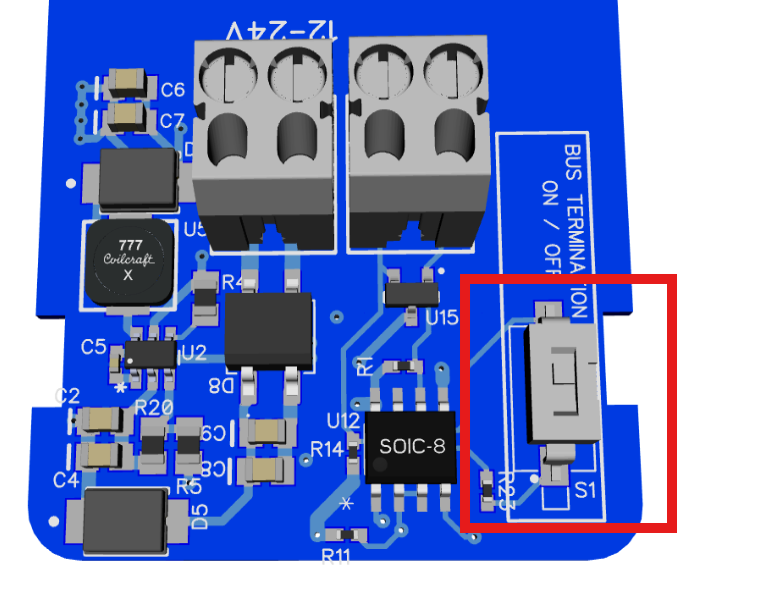

If cable length exceeds 30 meters or you connect more than one device on the bus you normally need to activate termination. This can be done by active the dip switch S1.

A sign that you need to enable termination is if you experience communication that comes and goes or fails to start.

Addressing

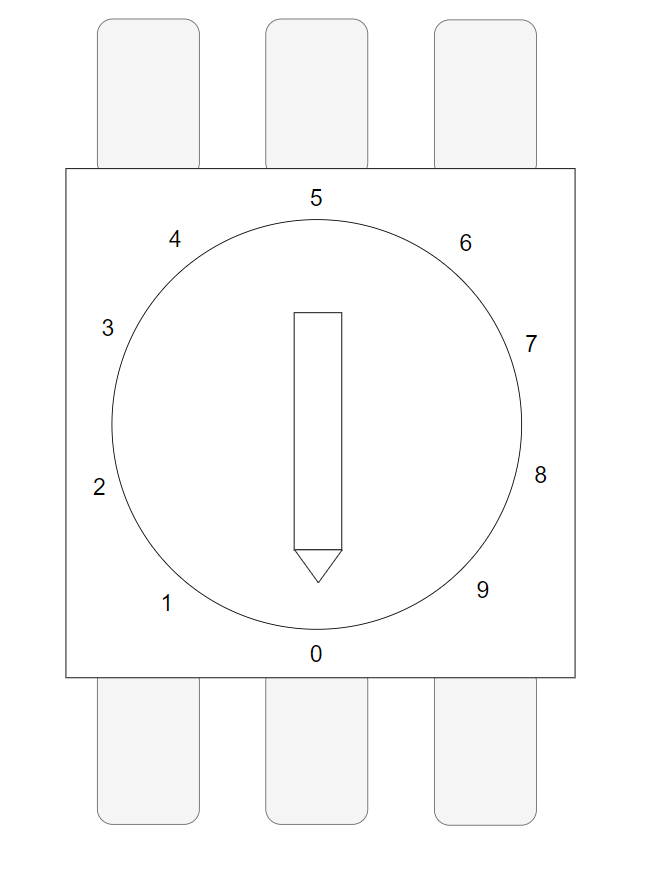

When it is time for deployment, start to set the address on the device, by use a screw driver and set address on address switch S2.

if only one reader is used please leave it on default address 0, if you have several set first reader to 0, second to 1 third to 2 and so on.

Now please connect CON2, CON3 to the reader, reader will start up and give a short beep sound.

Mounting

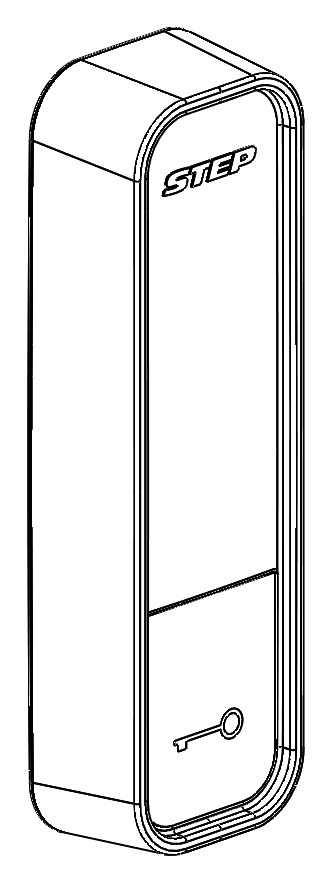

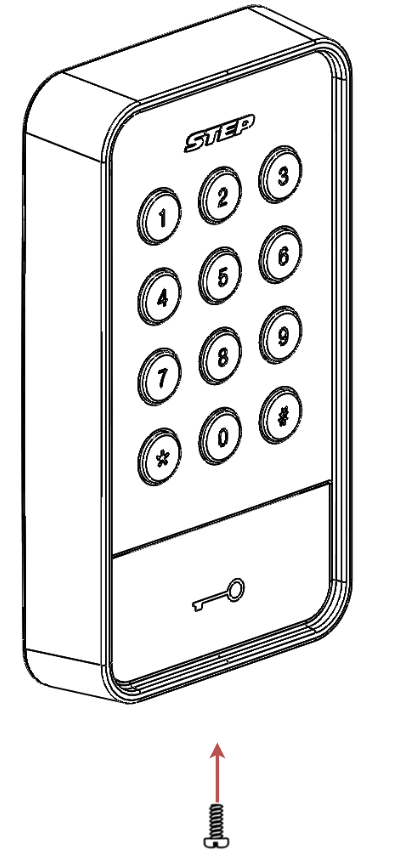

Hang the reader onto the upper edge of the wall plate and fold it onto its mount. Secure the reader with the included locking screw.
